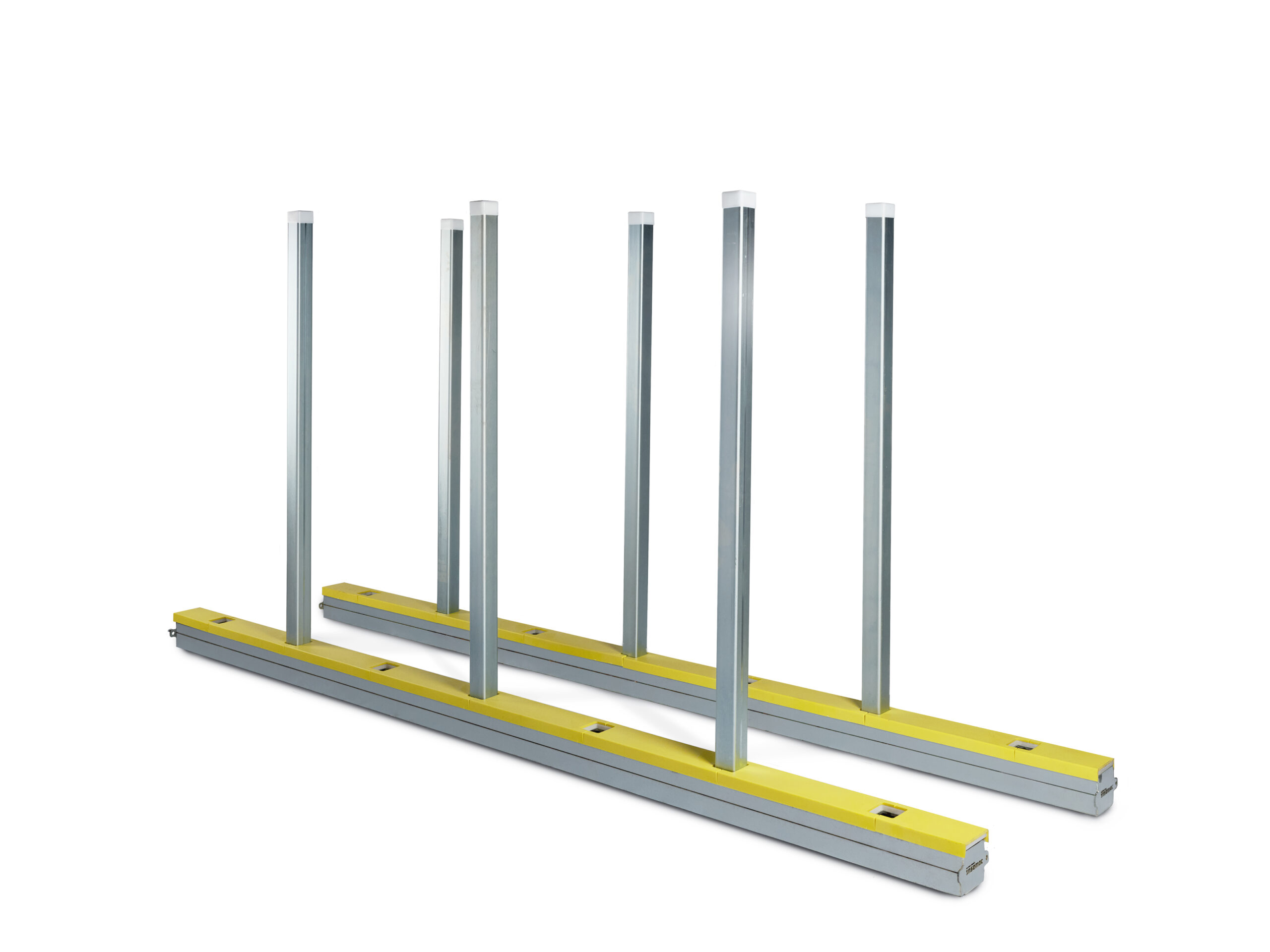

COMPACT STONE SUPPORT COMPACT 300
The Compact 300, with easel is a well-thought-out assembly of mechanical elements that allows the proper storage of pieces (such as slabs), typically made of stone, in a vertical position, without the use of any hydraulic or electrical mechanism.
It enables the correct storage of slabs in a vertical position, facilitating their subsequent movement or transfer using clamps or other holding elements that allow for lifting, thereby avoiding risks and injuries to personnel responsible for handling them.
It ensures proper storage of stone slabs, preventing material damage due to improper storage, and allows for the storage of slabs of various dimensions and materials, reducing unnecessary space requirements.
The Compact 300 with easel, due to the characteristics of its components, can be used both indoors in factories or warehouses and in outdoor spaces.
TECHNICAL SHEET
Description of the compact 300:
The system consists of two longitudinally welded UPN100 profiles. It features 7 dies for accommodating the baton (60x60x4mm tube), with the dies evenly distributed along the 3 meters. The distance between holes is 36.5 cm.
The bases are sealed at the ends with 5mm covers with perforated “ears” to allow the connection of different bases longitudinally.
Finish: Galvanized
Batons: The batons are made of square steel tubing with a section of 60×60 and a thickness of 4mm. Each baton comes with a rubber/plastic cap to protect the slabs.
Finish: Galvanized
