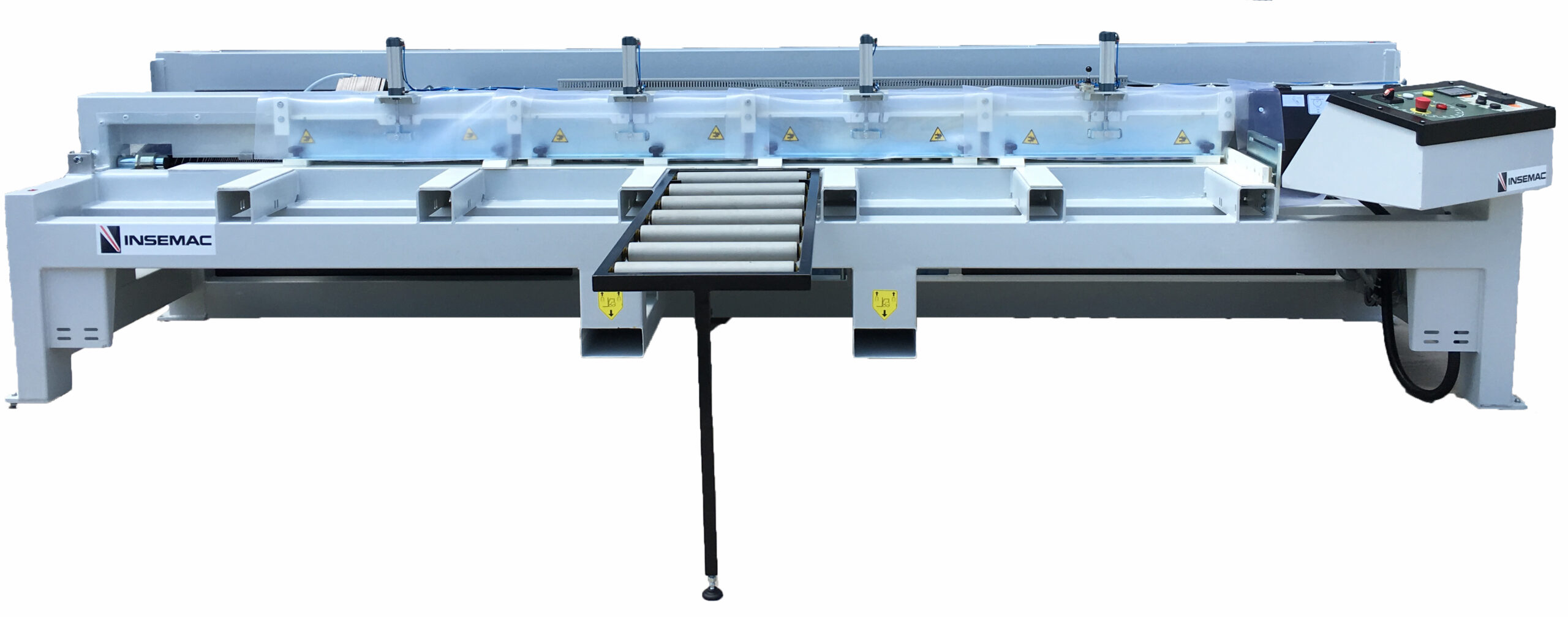

MITRESAW NEW
Cutter for making perfect 45 degree cuts in marble, granite, quartz, porcelain, etc. Cuts at 45 degrees in thicknesses from 3mm to 60mm, with a minimum workable width of 4cm. Once the part is placed, the pneumatic pistons hold the material against the table so that it remains straight and in place.
The miter cutter’s reputation for precise cuts is also due to the fact that the material is loaded with the polished side facing down, thus eliminating cutting errors that may arise due to small variations in the thickness of the material along its length.
TECHNICAL SHEET
Cutting Length: 3500 mm
Disc motor power: 7.5 HP
Disc Diameter: 300 – 400 mm
Cutting speed: 0 – 8m/min
Occupied space: 5000 x 1150 x1300mm
Weight: 1170kg
